Xcode Setup

Xcode can run coding agents such as Claude Code and Codex inside its own interface. Once you connect the WEEGLOO MCP server to it, the agent running inside Xcode can directly create, read, and modify resources such as Content Type, Content, and Media. Below, choose the agent you want to use inside Xcode, set everything up at once with the install tool, then just complete authentication.

MCP itself, the server groups, and the file upload server are covered in MCP. This page covers only the steps to connect to Xcode.

Prerequisites

Running the install commands below requires Node.js. First, check whether it is installed and whether the version is 18 or higher with the following commands.

If Node.js is installed but npx is not, update npm to the latest version with the command below. Updating npm installs npx along with it.

If Node.js is not installed or its version is too old, install Node.js using the method that fits your operating system.

Xcode must also be installed. If you do not have it yet, you can get it from Download Xcode.

Connecting

Choose the agent you want to use inside Xcode, then follow the guide below. An Xcode connection is always installed into the current project, so run the install command inside the project folder you want to connect.

Agent to use in XcodeClaude Code

1

Install MCP · Skills

Copy the install command and run it in your terminal. Be sure to run it inside the project folder you want to connect.

Terminal

$ npx weegloo@latest -y \ --agent claude \ --host xcode \ --token wgl_••••••••••••

Copy command

2

Authenticate MCP

Authenticate in the order below.

1. 1.Run Claude Code in your terminal. Be sure to run it inside the project folder you want to connect.
   Terminal

   claude
2. 2.On first run, Claude Code may ask which new MCP servers to enable. If it does, make sure weegloo and weegloo-upload are checked and press Enter to submit.
   Terminal

   New MCP servers found in .mcp.json Select any you wish to enable. > [√] weegloo [√] weegloo-upload
3. 3.Type /mcp to open the MCP server management screen.
   Terminal

   /mcp
4. 4.Select weegloo in the list. It shows as needs authentication.
   Terminal

   Manage MCP servers > weegloo · ∆ needs authentication weegloo-upload · √ connected

   If the servers are not in the list

   If weegloo and weegloo-upload are not in the list, you may not have submitted them on the enable screen in step 2, or they are disabled. Quit Claude Code, run the command below in your terminal, then run claude again. When the same screen as step 2 appears, make sure weegloo and weegloo-upload are checked and press Enter to submit.

   Terminal

   claude mcp reset-project-choices
5. 5.Confirm the URL is https://ai.weegloo.com/mcp and choose Authenticate.
   Terminal

   Weegloo MCP Server Status: ∆ needs authentication URL: https://ai.weegloo.com/mcp > 1. Authenticate 2. Disable

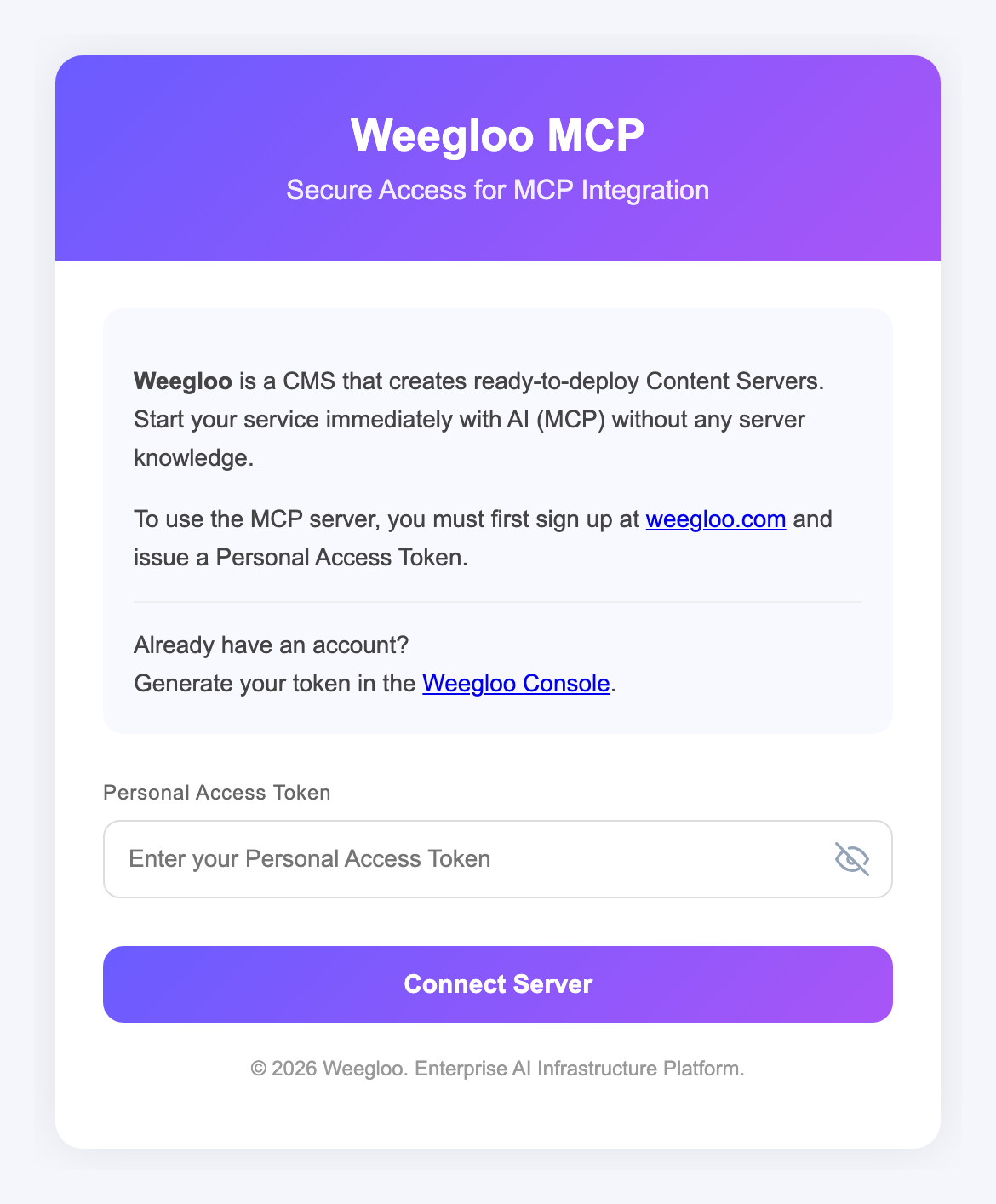

6. 6.Choosing Authenticate opens a WEEGLOO authentication page like the one below in your browser. Copy your token with the Copy token button, paste it, and click Connect server. When weegloo turns connected, you are done.

Copy token

After installing, start a new Xcode Agent session so it picks up the config.

Inspecting the Configuration File Yourself

The install tool registers the server in the configuration file of the agent you chose to use inside Xcode. An Xcode connection is always installed into the current project, so the file is created inside the project folder too. The file differs depending on the agent you chose.

• Claude Code: .mcp.json in the project folder (the format is the same as in Claude Code Setup)
• Codex: .codex/config.toml in the project folder (the format is the same as in Codex Setup)

There is one difference specific to using it inside Xcode. A PATH entry is added to the env of the weegloo-upload server, which handles files. Xcode runs agents with a minimal PATH, and without this entry it cannot find the npx needed to run the server. For Claude Code (.mcp.json), it looks like the following.

{
  "mcpServers": {
    "weegloo-upload": {
      "command": "npx",
      "args": ["-y", "weegloo-upload"],
      "env": {
        "PATH": "/Users/jiwoo/.nvm/versions/node/v22.14.0/bin:/usr/bin:/bin",
        "UPLOAD_API_URL": "https://upload.weegloo.com/v1",
        "AUTH_BEARER_TOKEN": "<Personal Access Token>"
      }
    }
  }
}

This PATH is hardcoded with the location of the Node that ran the install. If you move Node to a new version, this path no longer matches, so after upgrading, run the install tool again to refresh the value.

What to Do Next

• MCP: Covers the foundations of the connection, such as server groups and the file upload server.
• Skills and Rules: Covers what the Skills and Rules that the install tool sets up alongside it are.
• Migrating Static Pages with AI: Follow the flow of migrating a real page into a content-based service with the MCP connection you set up.
